Next-Generation Smart Technology

Smart Air Conditioning
Control Device

A new-generation smart air conditioning solution — compact, convenient, supporting multiple protocols, and deeply integrated into modern smart home ecosystems.

Operating Features

Additional hardware installed on the air conditioner indoor unit to expand its capabilities

📱

Remote Control

Remote control and monitoring of operating modes from anywhere.

⏰

Smart Scheduling

Timer, temperature adjustment, fan speed, and swing vane control.

🎯

Advanced Control

Customize each operating hour with different temperature settings based on sensor inputs.

🌡️

Temperature Limits

Restrict adjustments to a predefined temperature range for safety.

📅

Time Management

Usage time management with hourly, weekly, and monthly schedules.

🏢

Centralized Management

Control and monitor all air conditioners from a single system, improving supervision and energy efficiency.

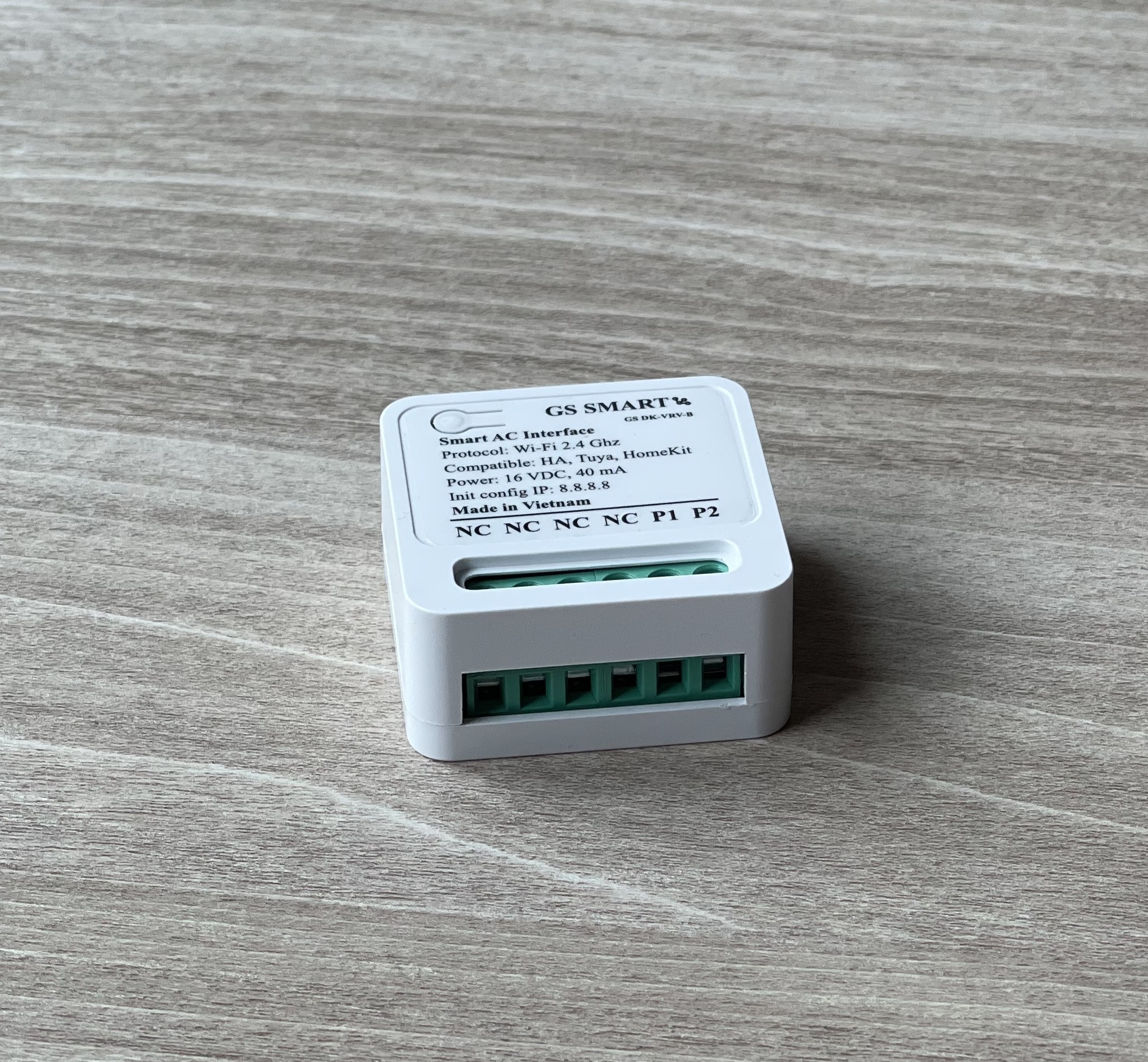

Technical Specifications

Comprehensive technical details of our smart AC control device

📐

Physical

Size: 43 × 43 × 20 mm
Weight: 24–27 g
Enclosure: Plastic
Packaging: Carton box
Capacity: Controls and monitors one indoor unit

⚡

Power & Connection

Power Supply: Directly from indoor unit (12–16V DC, <1W)
Exception: Toshiba AB requires external DC supply (9–24V)
Connection: Directly via built-in control port
Isolation: Galvanic isolation for KNX and RS485 modules

📡

Wireless

Wi-Fi: IEEE 802.11 b/g/n, 2.4 GHz
Max TX Power: 20 dBm

🔌

Wired Interfaces

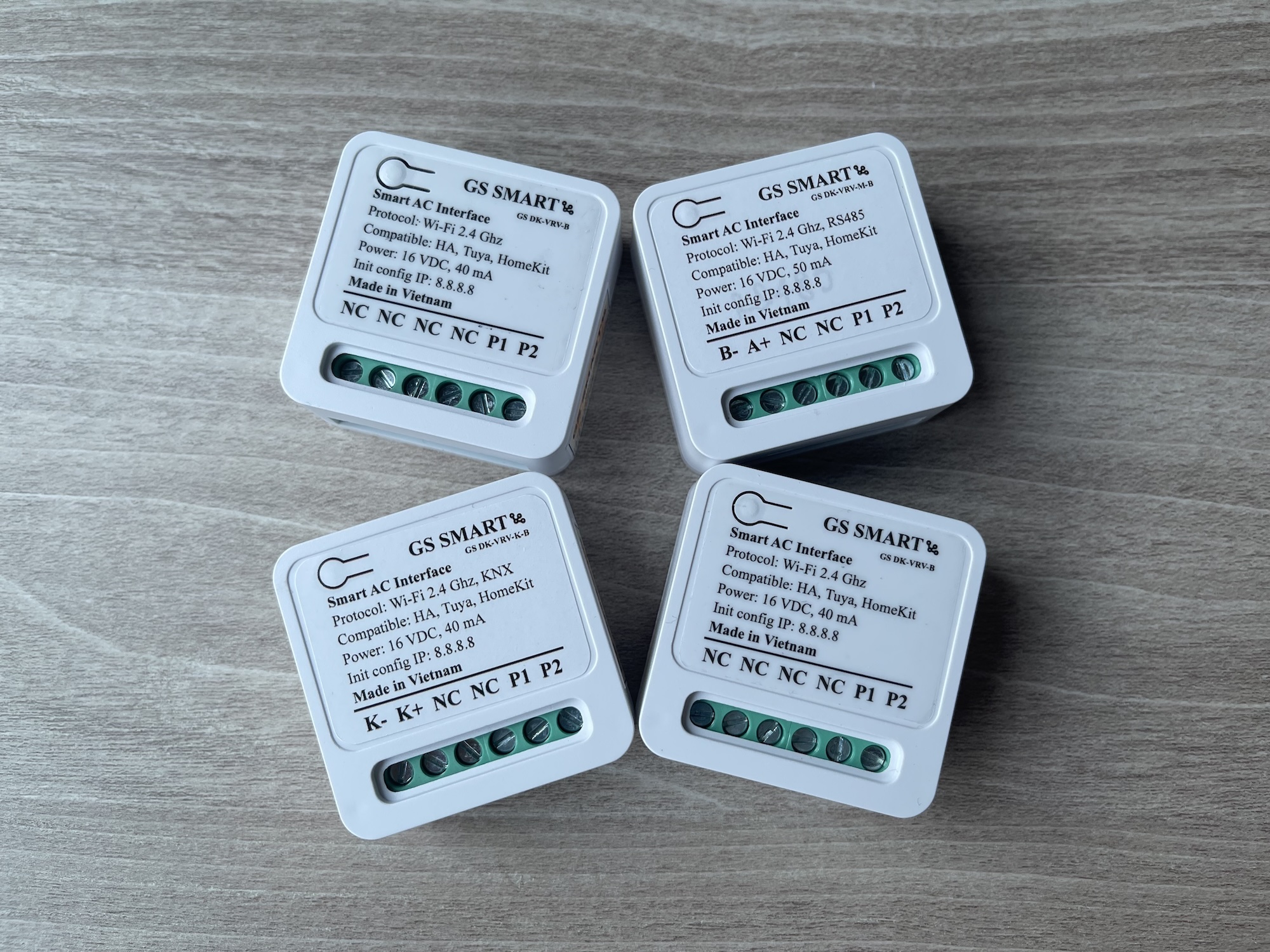

Control Interfaces: Wi-Fi, LAN, RS485, or KNX
Protocols: Modbus/RS485, KNX, Ethernet 10/100

Software Features

Powerful software capabilities for seamless control and integration

📱

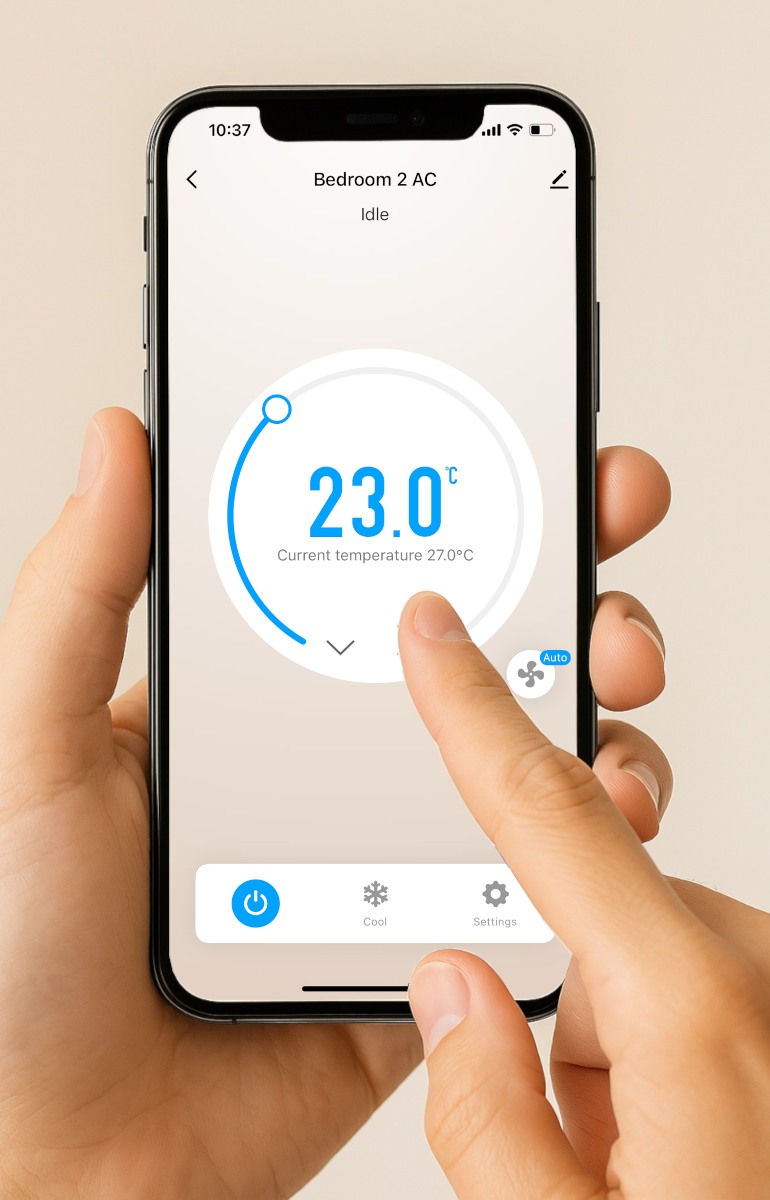

Mobile App Control

Control and monitoring via SmartLife/Tuya mobile app — no hub required.

🌐

Web Interface

Control and monitoring via web interface — no software installation needed.

🏠

Smart Home Integration

Integration with Home Assistant, HomeKit, and Matter.

🔌

Multiple Protocols

Connectivity through Modbus/RS485, KNX, and MQTT protocol.

⚡

Simultaneous Operation

All communication methods operate simultaneously without conflict, allowing parallel command reception and status reporting.

Deployment

Flexible installation options for various environments

The device connects directly to the indoor unit control port and is installed inside the indoor unit, or in the ceiling for ducted, cassette, and concealed units. Completely hidden to preserve aesthetics.

🔗

RS485 Mode

Indoor units are interconnected and linked to the centralized management system (AC Gateway) via RS485 using CAT5/CAT6 cables. The AC Gateway then communicates with the controller through Wi-Fi, Ethernet, or 3G/4G/5G.

🌐

KNX Mode

Indoor units are interconnected via the KNX TP protocol (KNX TP cable) or KNX IP. The AC Gateway then connects to the controller through Wi-Fi, Ethernet, or 3G/4G/5G.
